Rockwood 2962 Automatic Flush Bolt Set for Wood Doors

Usually Ships: 3-5 Business Days
  • For use with wood doors
  • Fully automatic; opening active door retracts top & bottom bolts
  • UL Listed up to 90 Minutes (fire-rated)

Available Options:

Clear

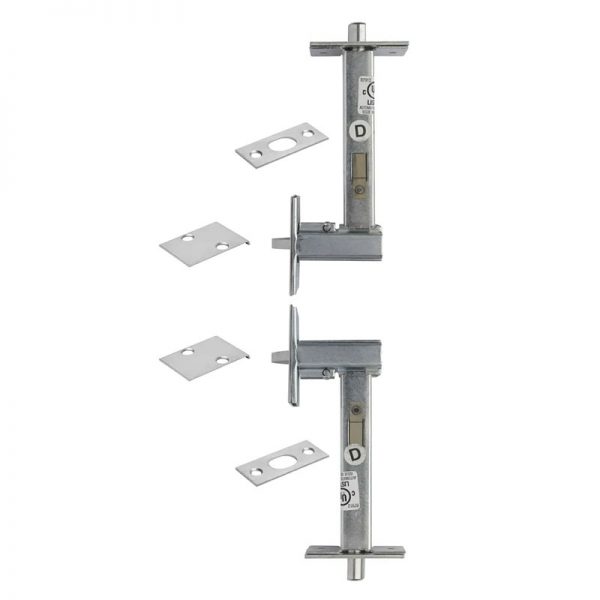

Rockwood 2962 Automatic Flush Bolt Set (top and bottom bolts) for Wood Doors

The durable, small profile 2962 Automatic Flush Bolt Set (top and bottom bolts) is for select fire rated wood core & composite doors. This easy-to-prep, non-handed set is fully automatic and features quiet and smooth activation, low closing force, and an override feature that prevents damage to doors or bolt if bolt head is blocked from entering strike.

Features

  • Patent #7,410,195
  • Durable, tested over 1 million cycles
  • Smaller profile adds stability to the door
  • Only two 1-1/8″ diameter holes for easier door preparation
  • Quiet & smooth activation
  • Fully automatic; opening active door retracts top & bottom bolts
  • Override feature prevents damage to doors or bolt if bolt head is blocked from entering strike
  • Low (3 lbs. maximum) closing force
  • Adjustable bolt head rod can be vertically adjusted 3/4″ for unusual clearances
  • Preparation prevents the veneer from splitting at the corners of the door
  • For up to 4’w x 9’h fire rated wood core & composite doors up to 1-1/2 hours fire rating

Benefits

  • Adjustable bolt head rod allows for precise fit during installation
  • Proven durability, able to withstand frequent use
  • ADA compliant
  • Preparation prevents the veneer from splitting at the corners of the door
  • Low closing force allows door to shut with less effort
Brand

Finishes

BSP Black Suede Powder Coat, US3 (605) Bright Brass, US4 (606) Satin Brass, US10 (612) Satin Bronze, US10B (613) Oil Rubbed Bronze, US32 (629) Bright Stainless Steel, US32D (630) Satin Stainless Steel

Fasteners

8 ea. #8 x 1" FH SMS, 8 ea. #8 x 3/4" FH combo screws, 4 ea. plastic anchors
