Product Overview

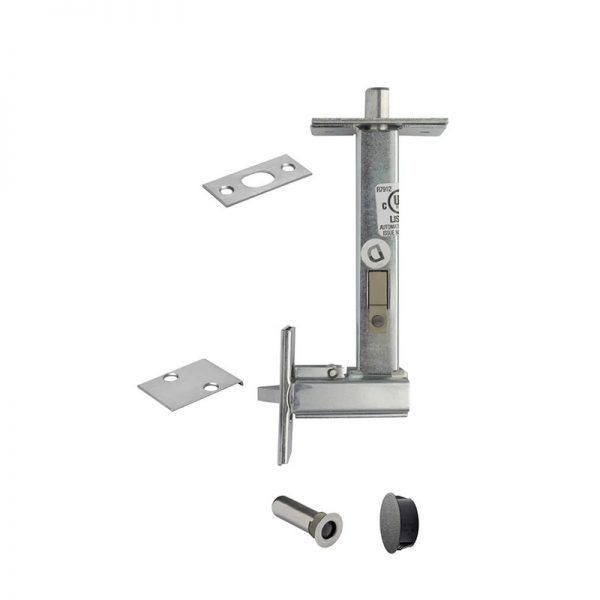

Rockwood 2960 Automatic Flush Bolt with Bottom Fire Bolt for Wood Doors
The 2960 Automatic Flush Bolt with Bottom Fire Bolt is for use on select fire rated wood core and composite doors. This durable, small profile product adds stability to the door and features quiet, smooth operation. This non-handed, fully automatic flush bolt also features an adjustable bolt head rod, low closing force, and an override feature prevents damage to doors or bolt if bolt head is blocked from entering strike.
Features
- Patent #7,410,195
- Durable, tested over 1 million cycles
- Smaller profile adds stability to the door
- Only two 1-1/8″ diameter holes for easier door preparation
- Quiet & smooth activation
- Fully automatic; opening active door retracts top bolt
- Override feature prevents damage to doors or bolt if bolt head is blocked from entering strike
- Low (3 lbs. maximum) closing force
- Adjustable bolt head rod can be vertically adjusted 1/2″ for unusual clearances
- For up to 4’w x 9’h fire rated wood core & composite doors up to 20 minutes fire rating
Benefits
- ADA compliant
- Proven durability, able to withstand heavy use over time
- Low closing force reduces effort needed to shut door
- Preparation prevents the veneer from splitting at the corners of the door
- Simplified installation process
Brand | |
---|---|
Finishes | BSP Black Suede Powder Coat, US3 (605) Bright Brass, US4 (606) Satin Brass, US10 (612) Satin Bronze, US10B (613) Oil Rubbed Bronze, US26 (625) Bright Chrome, US26D (626) Satin Chrome, US32D (630) Satin Stainless Steel |
Fire Rating | UL Listed 90 Min fire doors 8’0" X 8’0" |
Fasteners | 4 ea. #8 x 1" FH SMS, 4 ea. #8 x 3/4" FH combo screws, 2 ea. plastic anchors |
