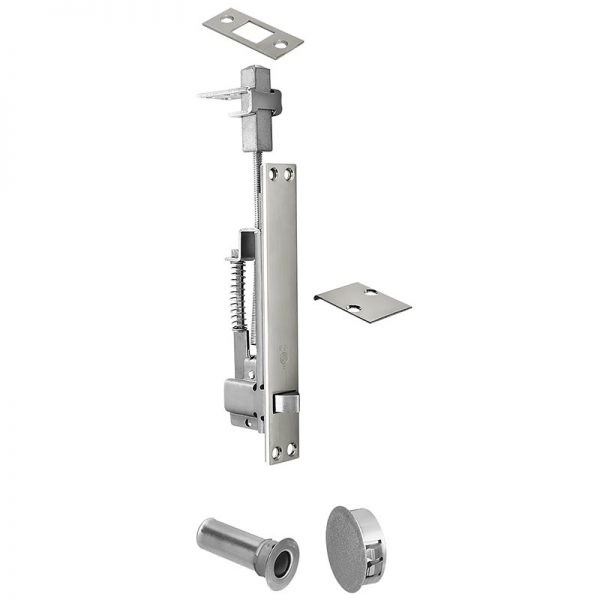

Rockwood 2848 Automatic Flush Bolt with Bottom Fire Bolt for Metal Doors

Usually Ships: 3-5 Business Days
  • For use with metal doors
  • Bottom fire bolt eliminates the need for floor prep
  • UL listed, fire-rated

Available Options:

Clear

Rockwood 2848 Automatic Flush Bolt with Bottom Fire Bolt for Metal Doors

The fully automatic 2848 Automatic Flush Bolt with Bottom Fire Bolt is for use on select fire-rated metal doors. This product features low closing force, an override feature that prevents damage to doors or bolt if bolt head is blocked from entering strike, and a thermal lock that automatically locks the inactive door under high heat conditions due to fire. The bottom fire bolt eliminates the need for floor prep and its oversized fire bolt strike hole allows for slight door misalignment.

Features

  • Low closing force
  • Fully automatic: opening active door retracts top bolt
  • Override feature prevents damage to doors or bolt if bolt head is blocked from entering strike
  • Bolt head rod is adjustable up to 3/4″
  • For fire rated metal doors labeled A, B, C, D & E up to 4′ wide x 9′ high
  • Thermal lock automatically locks the inactive door under high heat conditions due to fire

Benefits

  • Adjustable bolt head rod allows for precise fit during installation
  • Automatically secures inactive door leaf when active door is closed
  • Bottom fire bolt eliminates need for floor prep
  • Oversize fire bolt strike hole allows for slight door misalignment
  • Low closing force reduces effort needed to shut door
Brand

Finishes

BSP Black Suede Powder Coat, US3 (605) Bright Brass, US4 (606) Satin Brass, US10 (612) Satin Bronze, US10B (613) Oil Rubbed Bronze, US32 (629) Bright Stainless Steel, US32D (630) Satin Stainless Steel

Fire Rating

For fire rated metal doors labeled A, B, C, D & E up to 4' wide x 9' high

Fasteners

10 ea. #8 x 3/4" FH combo screws, 4 ea. plastic anchors
