Norton 6341 Low Energy Door Operator, WiFi-Enabled – Push Or Pull Side Mount

Usually Ships: 1-2 Business Days

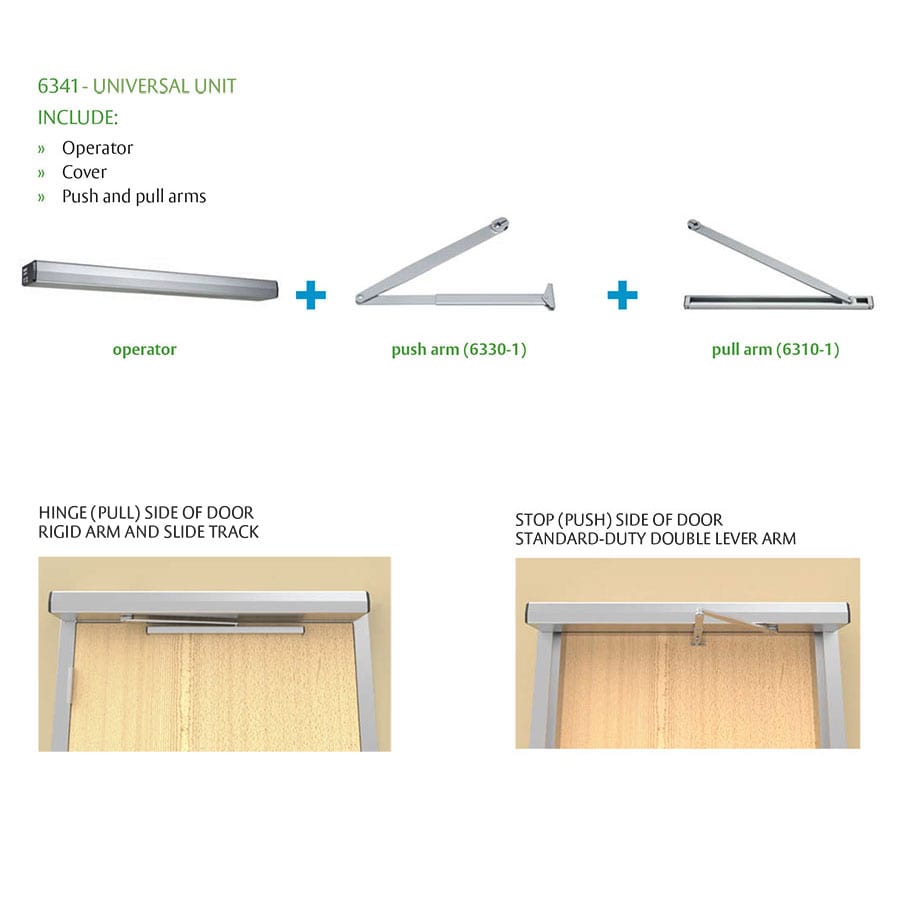

  • Includes Rigid Arm & Slide Track and Double Lever Arm
  • Designed for quick installation, setup, and adjustments
  • Aesthetically pleasing, slim profile

Available Options:

Clear

A full-featured automatic door operator with a slim profile for moderate to high traffic applications

The 6300 Series low energy operator offers a broad set of intelligent functions to safely secure and operate a variety of moderate to high traffic openings. A unique design with one of the slimmest profiles available allowing it to blend more seamlessly with the frame while fitting challenging applications with minimal header space. A modular design, simple controls, and new WiFi interface make for easy installation and setup.

Features

  • Non-handed
  • Push or pull side mounting
  • For use on interior and exterior doors with medium to high traffic
  • Compatible with door switches, wave-to-open switches, and radio frequency (RF) devices
  • Modular design with minimal components
  • Heavy-duty backplate serves as template
  • Customizable inputs and outputs for accessories, including security override and fire safety
  • Adjustable opening force and closing power
  • Slim profile measures 2 3/4″ high
  • Maximum door weight: 250lbs.
  • Door width: 36″-48″
  • WiFi interface (no connection to building’s WiFi is required)
  • Shorter length units available for double door applications
  • LCD screen

Benefits

  • Unique, aesthetically pleasing design blends seamlessly with frame
  • Low profile easily fits applications with minimal overhead space
  • Two lengths available to accommodate single and double door applications
  • Programming through onboard LCD screen or WiFi connected graphic interface on any device allowing for fast, easy setup and adjustments
  • Backplate template and modular components allow for easy, one person installation
  • Reduced germ transmission and increased ease of use with activation through wave-to-open switches and radio frequency (RF) devices
  • Array of intelligent functions enhances user safety and building security
  • Kits provide easy stocking and ordering for complete automated door solutions, from operator to accessories
Brand

Finishes

689 Aluminum (Powder Coated), 690 Dark Bronze (Powder Coated), BSP Black Suede Powder Coat, WSP White Suede Powder Coat

Mounting

Surface Mount

Usage

Heavy Duty

Traffic Rating

High Traffic

Handing

Non-Handed

ANSI/BHMA Standard

ANSI/BHMA A156.19 certified

ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code

Buy American Act Compliance

Meets BAA – Buy American Act

Warranty

2-year limited warranty
