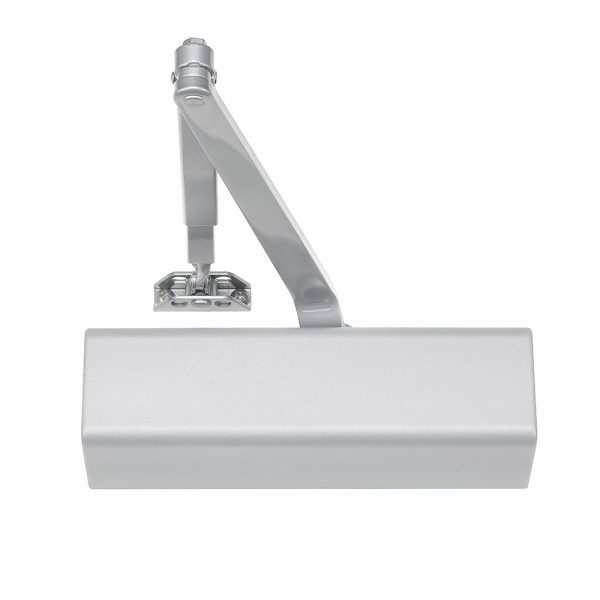

Norton 1601P Door Closer

Usually Ships: 1-2 Business Days
  • ANSI/BHMA A156.4, Grade 1 certified
  • Fully adjustable – Sizes 1-6
  • Regular, top jamb or parallel arm mount

Available Options:

Clear

Norton 1601P Grade 1 Tri-Mount Surface Door Closer, Adjustable Size 1-6, Non-Handed, Full Cover

The Norton 1601 is typically used as an aluminum storefront door closer, for light to medium traffic. A staple in the industry, these ANSI/BHMA Grade-1 closers are designed for exterior or interior doors. The 1600 Series door closers offer proven quality, performance, and reliability unmatched by the competition. 1600 Series closers are ideal for virtually any medium traffic, commercial application.

  • Tri-style® packaging: regular, top jamb or parallel mounting
  • Exceeds 25 million cycles (independently verified) for long life and fewer replacements
  • One-piece, heavy-duty cast aluminum body
  • High-strength aluminum alloy closer body provides for long life
  • Independent latch, sweep and backcheck intensity valves to ensure positive control

CODE COMPLIANCE

  • ANSI/BHMA A156.4, Grade 1 certified
  • UL / cUL listed for use on fire-rated doors
  • UL10C listed for positive pressure fire test
  • Meets requirements for Americans with Disabilities Act
Brand

Finishes

689 Aluminum, 690 Dark Bronze

Usage

Standard Duty

Templating (Hole Pattern)

3/4" x 9-1/16"

ANSI/BHMA Standard

ANSI/BHMA A156.4, Grade 1 certified

ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code

Body Construction

Cast Aluminum Body

Spring Size

Adjustable Spring Size 1-6

Handing

Non-Handed

Cover

Full Cover

Mounting Options

Parallel Arm (Push Side), Regular (Pull Side), Top Jamb (Push Side)

Fire Rating

UL and cUL Listed – up to 3 Hours

Warranty

30 Years

Norton 1600 Series Tri-Style Non-Hold Open Installation Instructions
