NGP (National Guard) 9590 Fire Door Bottom Gap Solution, Door Sweep and Shoe

Usually Ships: 10-15 Days
  • Suitable for use on gaps up to 1-1/2”
  • Door sweep and L shape bottom with intumescent
  • Helps bring fire doors back into compliance

Available Options:

Clear

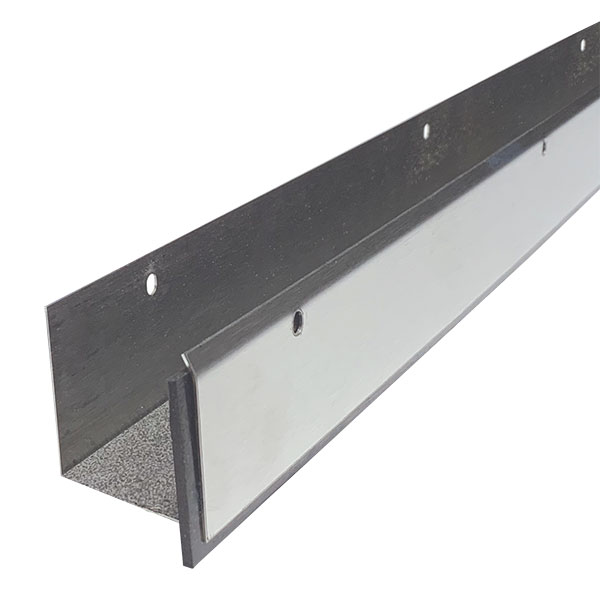

National Guard Products 9590 Fire Door Bottom Gap Solution — Up To 90 Minutes

UL Certified for Door Bottom Gaps — Measuring up to 1-1/2″

  • 90-Minute Rated — for Use on UL10B and UL10C Wood or Hollow Metal Fire Doors
  • Certified for use on doors with Concealed Vertical Rod Exit Devices or Automatic Flush Bolts, refer to Installation Instructions
  • Restricts the passage of smoke
  • Available in 36″ and 48″ Lengths
  • End Caps Furnished Standard
  • Non-handed
  • Patent Pending

PRODUCT CONSISTS OF:

  • #304 Brushed Stainless Steel Neoprene Sweep — Pull Side
  • #304 Brushed Stainless Steel Intumescent Shoe — Push Side
  • #304 Brushed Stainless Steel End Caps
  • #6 X 3/4” Stainless Steel SMS Furnished

FINISH:

  • Brushed Stainless Steel, Neoprene is Black

STANDARDS:

  • CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal and Wood fire doors rated up to 90 minute with excessive door bottom undercut/ clearances measuring up to 1-1/2″.
  • POSITIVE PRESSURE – CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal and Wood fire doors rated up to 90 minute with excessive door bottom undercut/clearances measuring up to 1-1/2″.
Brand

Finish

Stainless Steel

Length

36", 48"

Fire Rating

90-Minute Rated — for Use on UL10B and UL10C Wood or Hollow Metal Fire Doors
