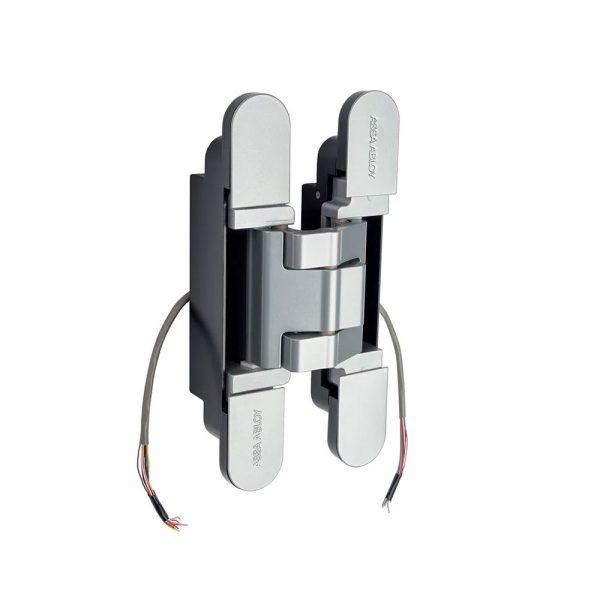

McKinney MK130+8ME “CC” Concealed Circuit 3D Adjustable Concealed Invisible Electrified Hinge

McKinney MK130+8ME Concealed Circuit 3D Adjustable Concealed Invisible Electrified Hinge

The MK130+8 and MK130+8ME are concealed hinges for wood or hollow metal doors with a 1-3/4″ minimum thickness. They are non-handed, corrosion-resistant, and include magnetic covers. The MK130+8ME is electrified, allowing for a constant flow of current from a power source through the hinge to electrified door hardware, including locks, strikes, and exit devices.

Features

• Clears cladding on door up to 8mm (1/3″)
• For wood or hollow metal doors that are a minimum 1-3/4″ thick
• 200mm (7.87″) hinge length, 37mm (1.46″) hinge width
• Magnetic covers included
• Can hold doors up to 461 lbs.
• 3-dimensional adjustability, 180° opening angle
• Base Materials: Hinge body – zinc alloy, Hinge arms – aluminum, Hinge covers – steel
• Cataphoresis coating provides a durable and corrosion-resistant surface

Benefits

• Magnetic covers conceal screws for a clean aesthetic
• Greater hinge capacity than all McKinney concealed hinge models except the MK200
• Easy installation and door alteration
• Keeps door clean and minimal
• No visible exposure on the outside of the opening
• Prevents tampering, increases security
• Electrified hinges can: Secure your building and doorways, easily and safely power locking hardware and access control, use wires with connectors that leads or snaps together, resistant to tampering as there are no external wires, improve the overall look of the access door (MK130+8ME)

Cross Reference: Tectus 540 3D A8 Energy
