Markar FS/SC309 Heavy Duty Full Surface Swing Clear Stainless Steel Pin & Barrel Continuous Hinge

Usually Ships: 5-10 Business Days
  • Ensures that a door opened to a 90-degree angle is removed from the opening
  • Heavy-duty 14 gauge stainless steel
  • Supports weights up to 600lbs

Available Options:

Clear

Product Overview

Markar FS/SC309 Series Heavy Duty Full Surface Swing Clear Stainless Steel Pin & Barrel Continuous Hinge

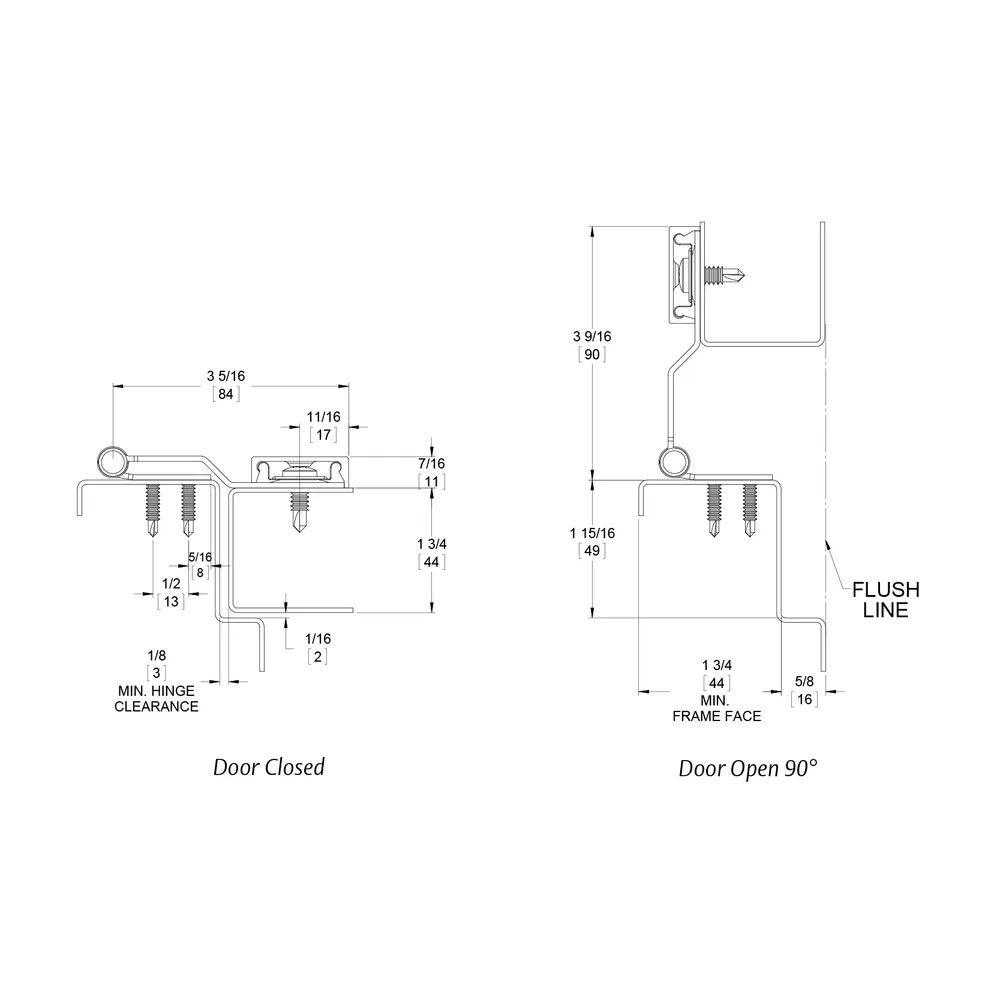

The Markar FS/SC309 Full Surface Continuous Pin and Barrel Hinge is used to ensure that a door opened to a 90-degree angle is removed from the opening. This hinge will mount on a 1 3/4″ face and is especially useful for ADA upgrade work.

Features

  • Ensures that a door opened to a 90-degree angle is removed from the opening
  • Mount on a 1 3/4″ face
  • Stainless steel end pins
  • Fasteners concealed when door is closed
  • Includes Custom 12-24 x 11/16” S.S. Phillips Flat Head Undercut TEK Screws & 1/4-14 x 3/4″ Security TORX TEK Screws
  • Cover made from extruded aluminium

Benefits

  • Especially useful for ADA upgrade work
  • Fire ratings up to and including 3 hours

Certifications

  • UL 10C – Standard for Positive Pressure Fire Tests of Door Assemblies
  • Warnock Hersey listing
  • ANSI/BHMA Standard A156.26
Brand

Finish

Stainless Steel
Material

304 Stainless Steel
Usage

Heavy Duty
ANSI/BHMA Standard

ANSI/BHMA Standard A156.26 Grade 1, ANSI/SDI 250.13 Certified
Fire Rating

UL 10C – Standard for Positive Pressure Fire Tests of Door Assemblies, Warnock Hersey Listing
Continuous Hinge Type

Full Surface, Swing Clear
Buy American Act Compliance

Meets Buy Amercian Act – Made in USA
