Product Overview

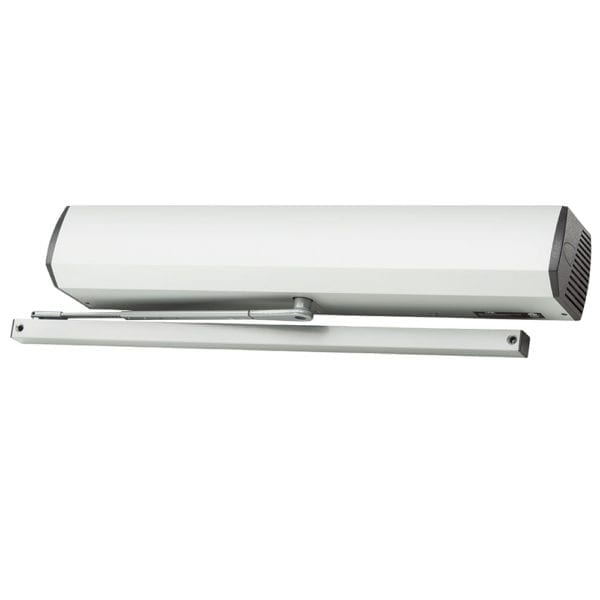

LCN 9131-STD Grade 1 Standard Arm, Electromechanical Benchmark Low Energy Door Operator, Pull Side Mounting
The Benchmark low-energy operators are electrically powered and are cost-effective for retrofitting an activated or manual door. The 9130 Series meets ANSI/BHMA A156.19 and ANSI A117.1 standards, are American Disabilities Act (ADA) compliant, UL-listed and feature a 2-year limited warranty.
The operators feature a Push ‘N Go activation, providing easy access for people with disabilities and the elderly. The Push ‘N Go feature takes over when a pedestrian manually opens the door to five degrees, then holds the door fully open for 1-30 seconds, depending on the time delay. Power Boost provides additional closing force in severe wind.
| Brand | |
|---|---|
| Finishes | ANDKB Dark Bronze, ANCLR Anodized Aluminum |
| Usage | Standard Duty |
| Certifications | Grade 1 – ANSI A117.1, A156.19, UL 10C, ADA, 100 Hour Salt Spray, Meets BAA – Buy American Act |
| Handing | Non-Handed |
| Mounting | Top jamb (Pull Side) |
| Arms | Regular Arm |
| Cover | Metal |
| Warranty | 2 Years |
| Buy American Act Compliance | Meets Buy Amercian Act – Made in USA |
