Design Hardware 316R Door Closer with Replacement Plate

Name: 316R Door Closer with Replacement Plate
Brand: Design Hardware
SKU: 253679
Price: 101.45 USD
Availability: InStock

Usually Ships: 2-3 Business Days

Available Options:

Finish

Clear

Quantity:

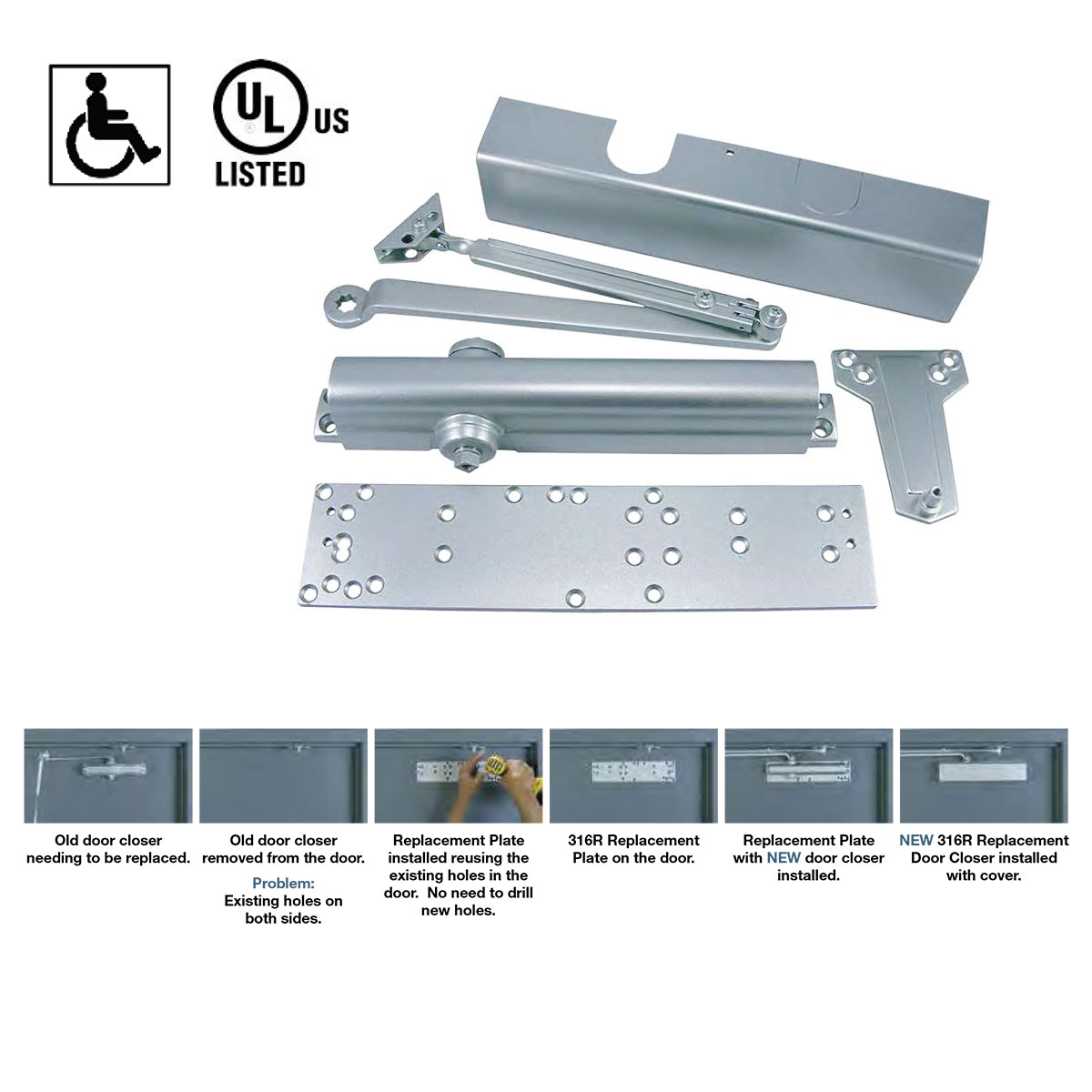

Design Hardware 316R Grade-1 Door Closer with Replacement Plate, Size 1-6 Adjustable, Cast Aluminum Body, Regular Arm with PA Bracket, Full Cover

The Design Hardware 316 Series is an affordable door closer for institutional, industrial, commercial, and other medium to high traffic applications.

Easily replace field closers – Eliminate patching and painting Pre-drilled, All-in-One closer

Includes Patented Mounting Plate (replaces a wide variety of the most popular door closers without drilling new holes)
Heavy Duty Cast Aluminum Closer Body, Rack & Pinion Construction
Adjustable Spring Power from Size 1 to 6 – Preset at size 3
Independent Latch & Sweep Speed Controls
Back Check Intensity Control Standard
Staked Valves to prevent backing valves out too far
Minimum Top Rail : 3-1/2″ – Top Jamb: 2-1/4″ – Parallel Arm: 5-1/4″
Thru bolts with machine screws, Wood screws & Self tapping machine screws included
Includes all screws and brackets for Regular, Top Jamb and Parallel Arm Installations

Replaces

Brand	Design Hardware
Finishes	689 Aluminum (Powder Coated), 690 Dark Bronze (Powder Coated)
Templating (Hole Pattern)	3/4" x 12"
Usage	Medium Duty
ANSI Grade	Meets ANSI A156.4 – Grade 1 Standards
ADA Compliance	Meets ADA requirements – A117.1 Accessibility Code
Body Construction	Cast Aluminum Body
Spring Size	Adjustable Spring Size 1-6
Fire Rating	“A” Label 3 Hour Fire Doors
Handing	Non-Handed
Mounting Options	Parallel Arm (Push Side), Regular (Pull Side), Top Jamb (Push Side)
Cover	Full Cover
Door Applications	Hollow Metal, Wood or Aluminum
