Product Overview

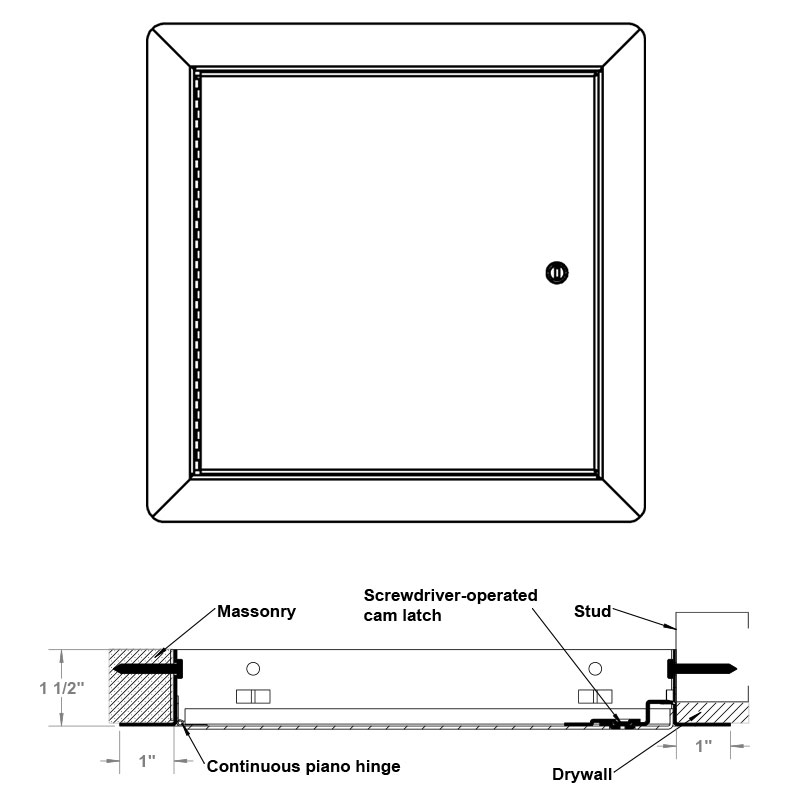

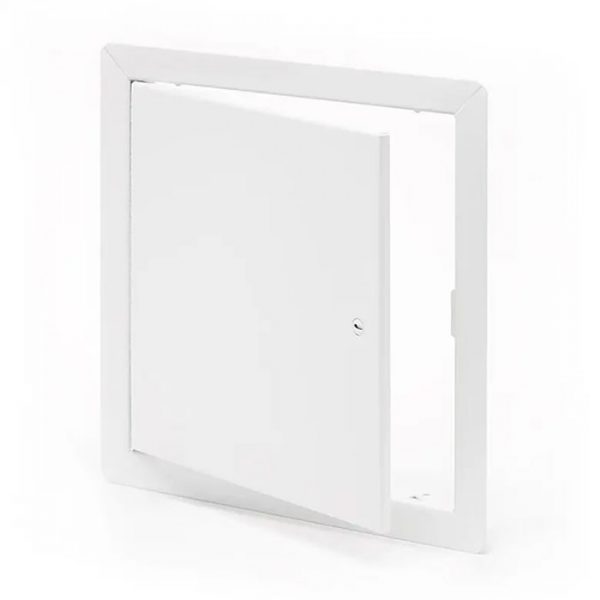

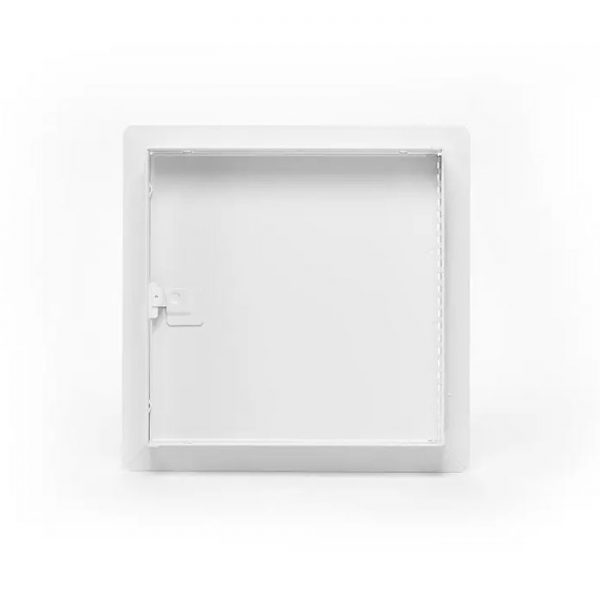

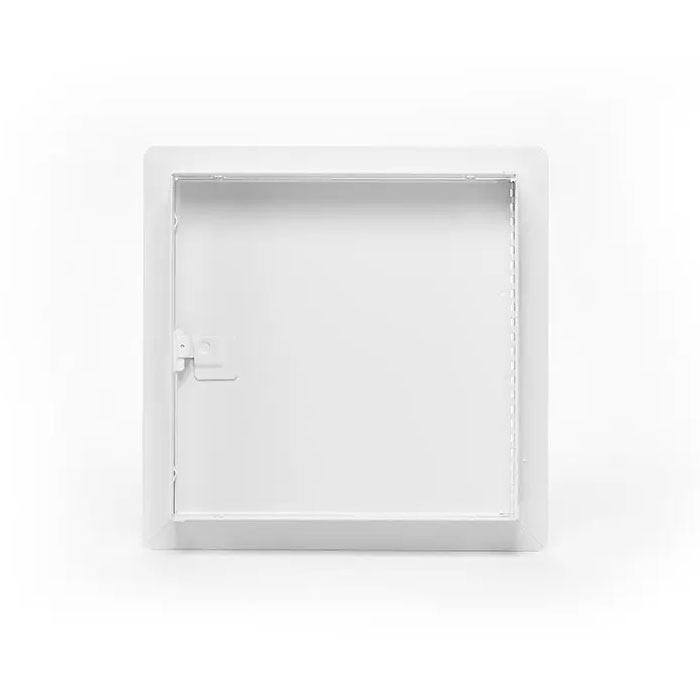

Cendrex AHD-110 Flush Universal Access Door with Exposed Flange, Screwdriver-Operated Cam Latch, Piano Hinge
Designed for quick and easy installation on non-rated walls and ceilings. The piano hinge is ideal for larger doors.
- Material: 16-gauge cold rolled steel
- Hinge: Hot rolled and stamped steel continous piano hinge. Hinge location: Hinges must be located on the second dimension (height).
- Locking mechanism: Screwdriver-operated cam latch
- Flange: 1″ exposed flange
- Frame: 1-1/2″ in depth
- Rough opening: Door sizes + ¼ ” or + 6mm
- Finish: High quality white powder coat primer
- Packaging: Individually wrapped, 1 door per box
| Brand | |
|---|---|
| Size | 22" x 30", 22" x 36", 24" x 30", 24" x 36", 24" x 48", 30" x 30", 36" x 36" |
| Finish | White |
| Rough Opening Size | + 1/4” or + 6 mm |
