1800xAU428Fx689

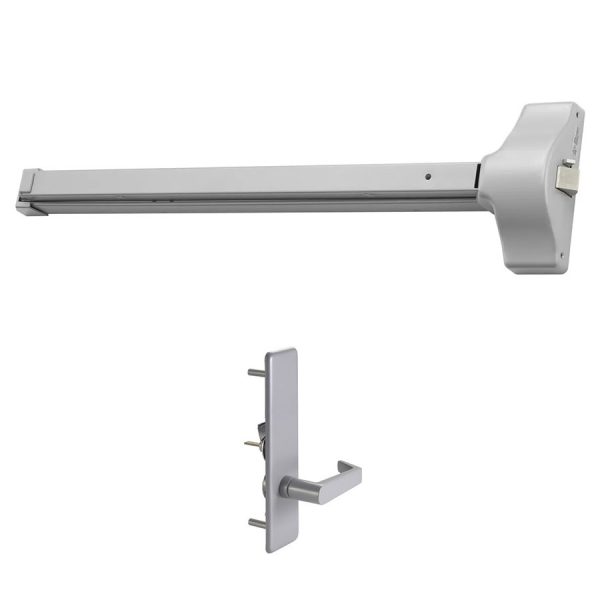

Accentra (Formerly Yale) 1800 x AU428F Panic Rim Exit Device with Passage Lever Trim

Usually Ships: 1-2 Business Days
  • ANSI/BHMA Grade-1 Certified
  • ANSI Function 14 (Passage)
  • Includes AU-428F lever trim

Available Options:

Product Overview

Accentra (formerly Yale) 1800/1800F Series Flatbar Rim Exit Device, AU-428F Passage Lever Trim

Accentra 1800 series exit devices are the ideal choice for economy commercial applications where consistent quality, ease of use, and installation are required. The 1800 devices are certified ANSI/BHMAA156.3, Grade-1, and their performance, construction, and versatility make them perfect for a variety of facilities. Ideal for back of the house where function and code compliance are the requirement at an economical price.

  • ANSI Function 14 – Entrance by trim when latchbolt is released by lever. Lever always active, no cylinder.
  • Designed for wide stile doors
  • Non-handed for easy installation
  • ISO 9001: Designed and manufactured under a certified ISO 9001 quality system

AU-428F Lever Trim

  • ANSI Function: 14
  • Entrance by trim when latchbolt is released by lever. Lever always active, no cylinder.
  • AU (Agusta) lever design
  • Field reversible – ships as RHR
  • Dimensions: 2-1/2″ x 9-1/2″ x 1/4″
Brand

Length

36" (for 30" to 36" Doors), 48" (for 42" to 48" Doors)
Finishes

689 Aluminum (Powder Coated), 695 Dark Bronze (Powder Coated)
Includes Trim

Yes
Trim

428F
Lever Design

AU (Augusta)
ANSI/BHMA Standard

Certified ANSI/BHMA A156.3, Grade 1
Usage

Medium Duty
Stile Type

Wide (Standard)
Fire Rating

1800: Non-Rated – 1800F: UL/cUL Listed for use on fire doors up to 3 hours
Handing

Non Handed – Completely Reversible
Minimum Stile Width

4-1/2"
Projections

2-1/2" active, 1-3/4" dogged
Latchbolt

3/4" deadlocking stainless steel pullman-type
Strike

757F, 793 optional (double door application, panic only)
Dogging Feature

Hex key dogging standard on non-fired-rated devices
Fasteners

Machine screws and wood door fasteners standard for panic hardware. Sex nuts and bolts supplied standard for fire exit hardware
Door Applications

1-3/4" Metal, wood or composite doors
Warranty

1 Year
